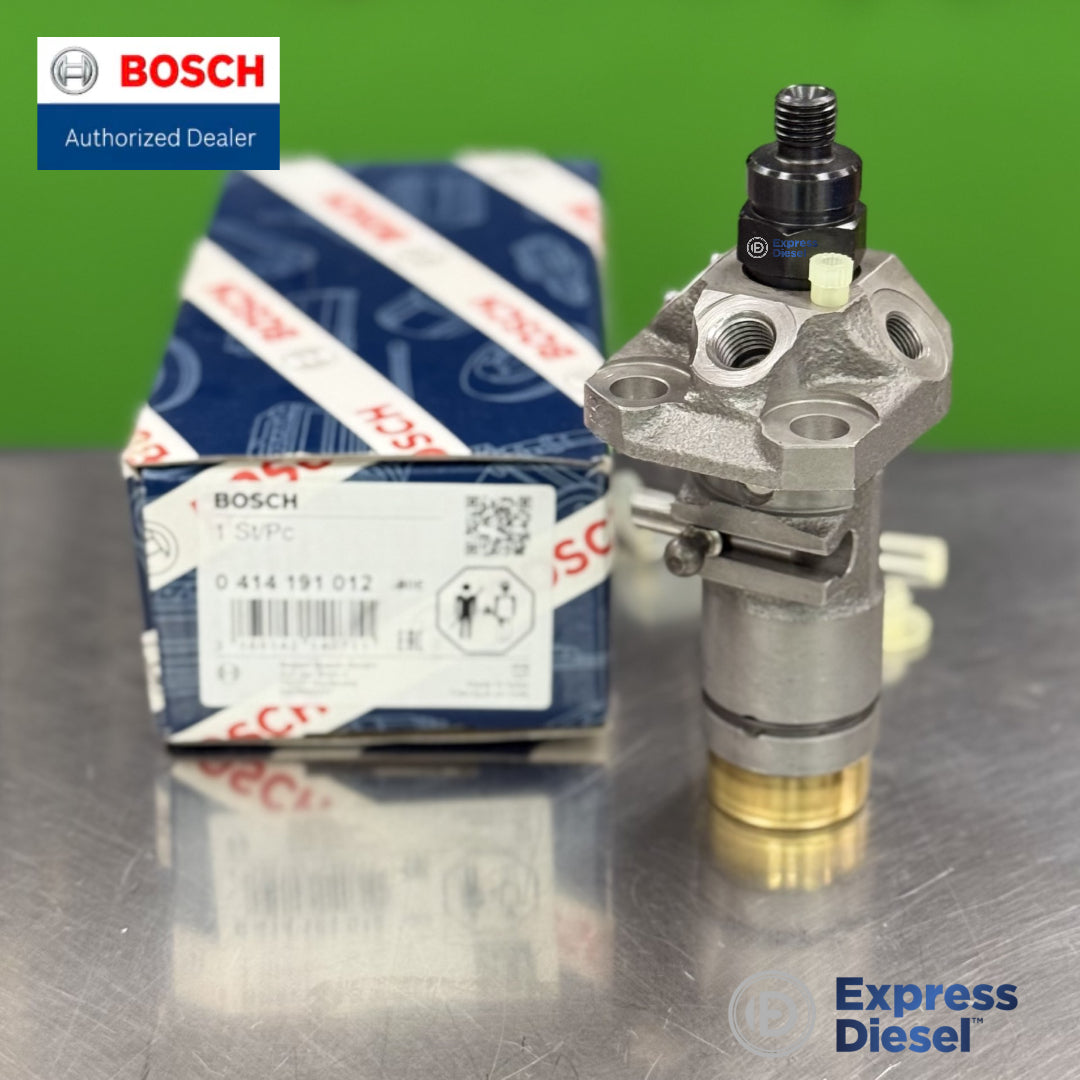

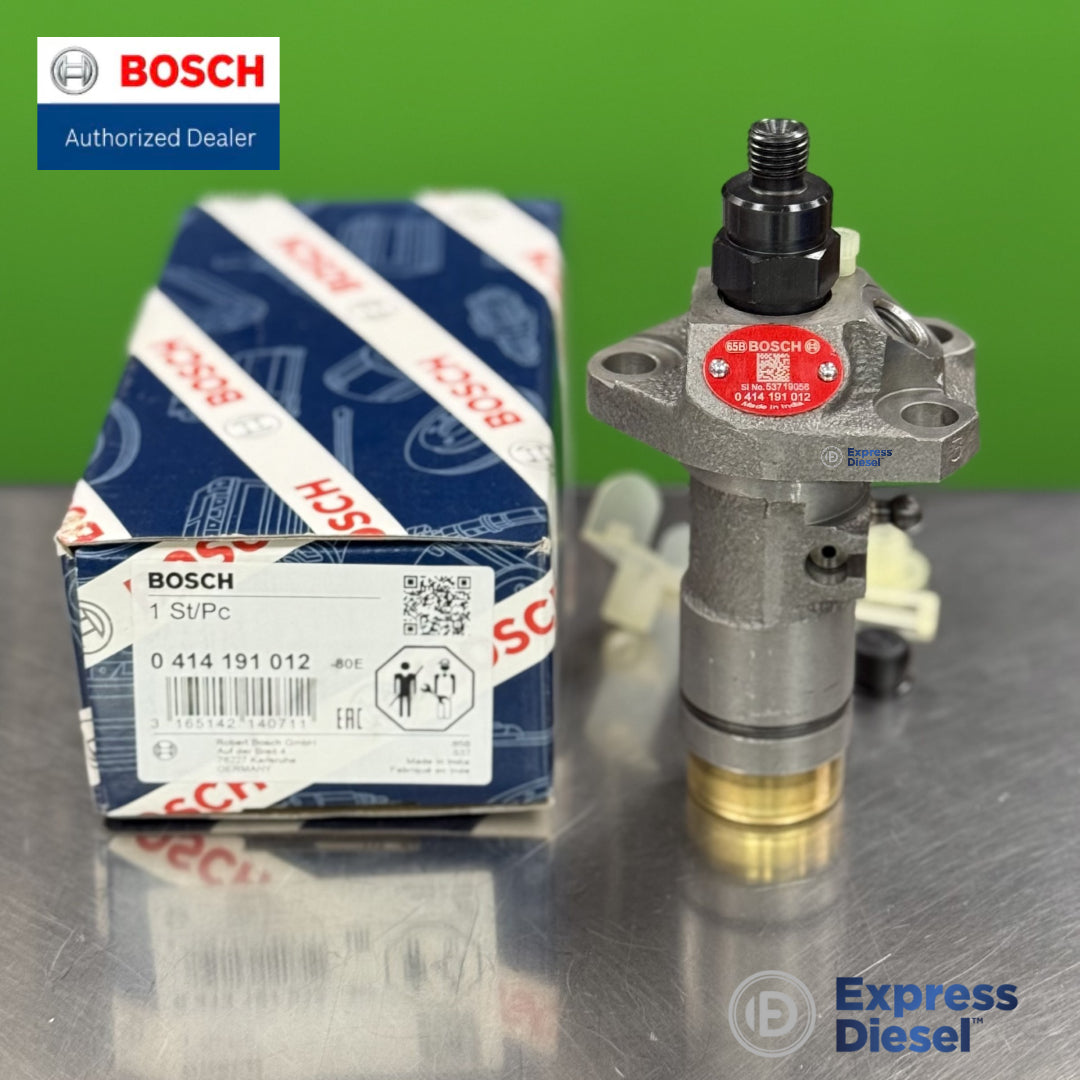

0414191012 Bosch Diesel Injection Pump for SAME Lamborghini Hurlimann AGCO Case Muzzi

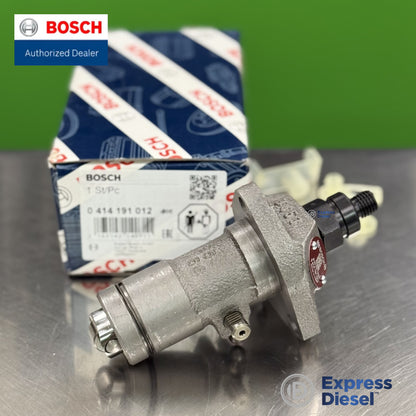

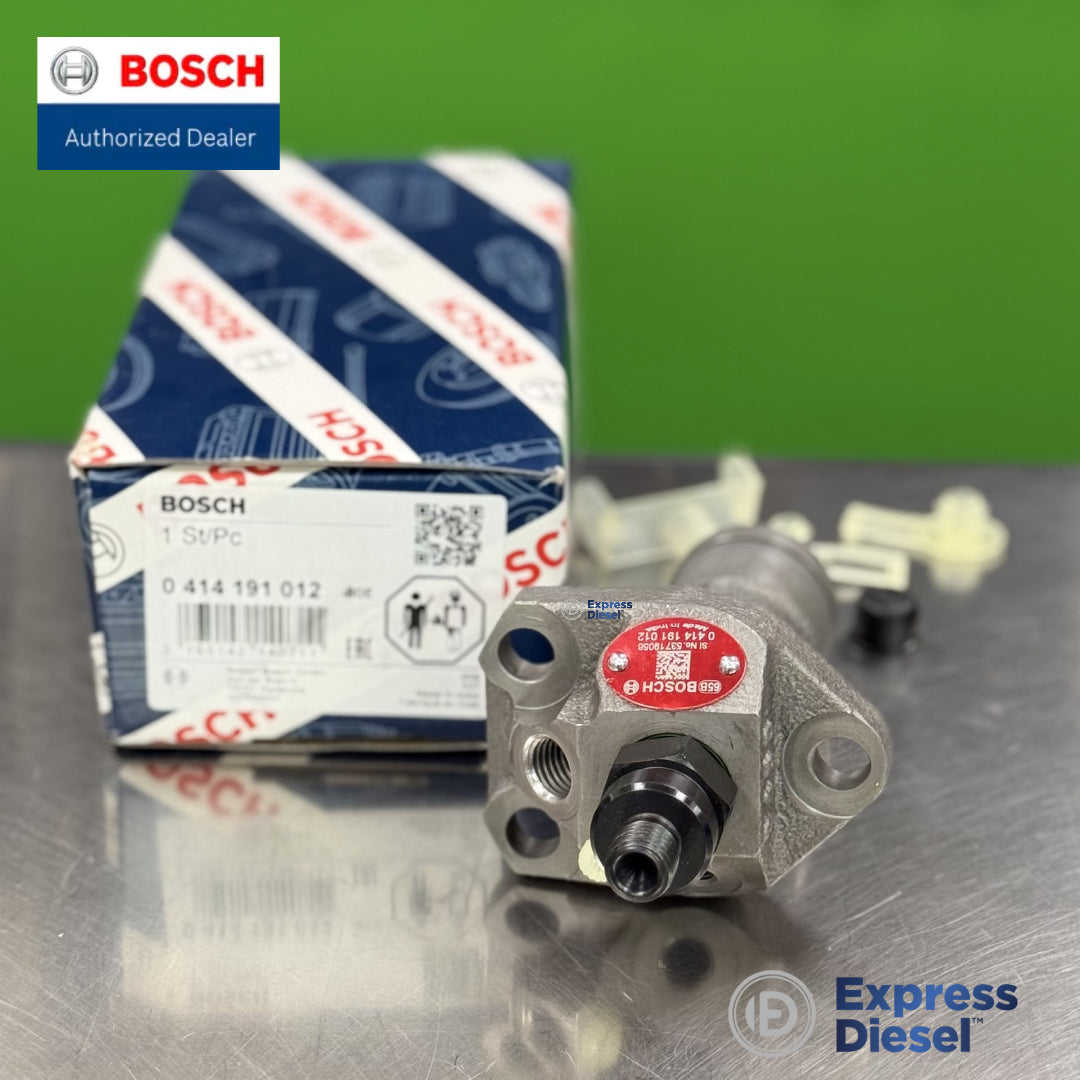

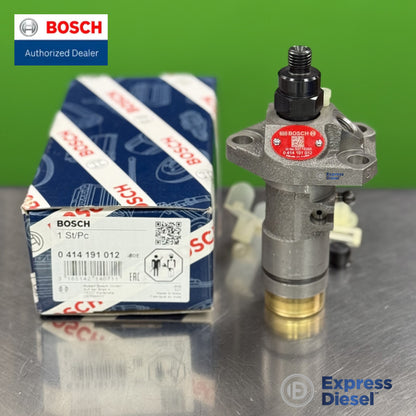

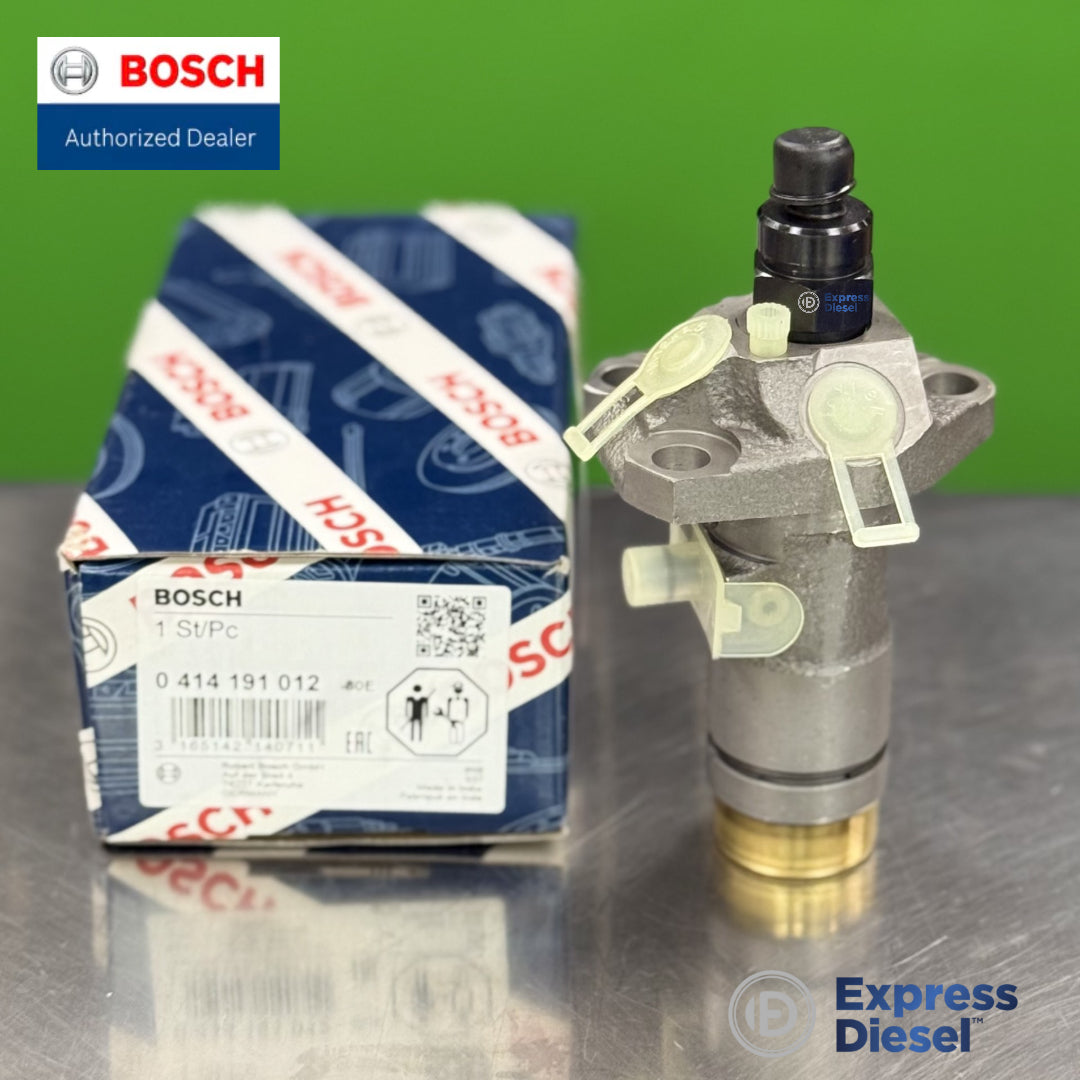

Genuine Bosch 0414191012 diesel fuel injection pump (internal type PFR1K90A555) engineered for SAME 1000-series 3, 4 and 6-cylinder diesel engines used across SAME, Lamborghini, Hürlimann, AGCO Deutz-Allis and Case IH tractors and Muzzi power generators. This brand-new PFR-type single-cylinder mechanical injection pump (PF series) is designed to deliver precise fuel metering, stable fuel delivery, reliable starting, improved combustion efficiency and long-term durability in agricultural, industrial and power-generation applications.

Manufactured to Bosch OEM standards, this high-quality pump is commonly fitted as an individual per-cylinder element on the SAME-built 1000.3, 1000.4 and 1000.6 engine family together with OEM references 24619030 and 72258111. It is supplied brand new, with a 1-year warranty.

Suitable for selected AGCO Deutz-Allis, Case IH, Hürlimann, Lamborghini, SAME and Muzzi diesel applications using Bosch PFR mechanical injection systems.

Key Features

Feature	Details
Product type	Mechanical diesel fuel injection pump
Brand	Genuine Bosch
Bosch part number	0414191012
Pump type	Bosch PFR single-cylinder inline pump (PF series)
Internal type designation	PFR1K90A555
Application	Agricultural tractors, industrial and power-generation diesel engines
Installation type	Direct OEM replacement when part numbers match
Quality standard	Bosch OEM manufacturer quality
Warranty	1-year warranty
Recommended installation	Professional installation recommended

Product Details

Product detail	Information
Main Bosch reference	0414191012
Additional reference	0 414 191 012, PFR1K90A555

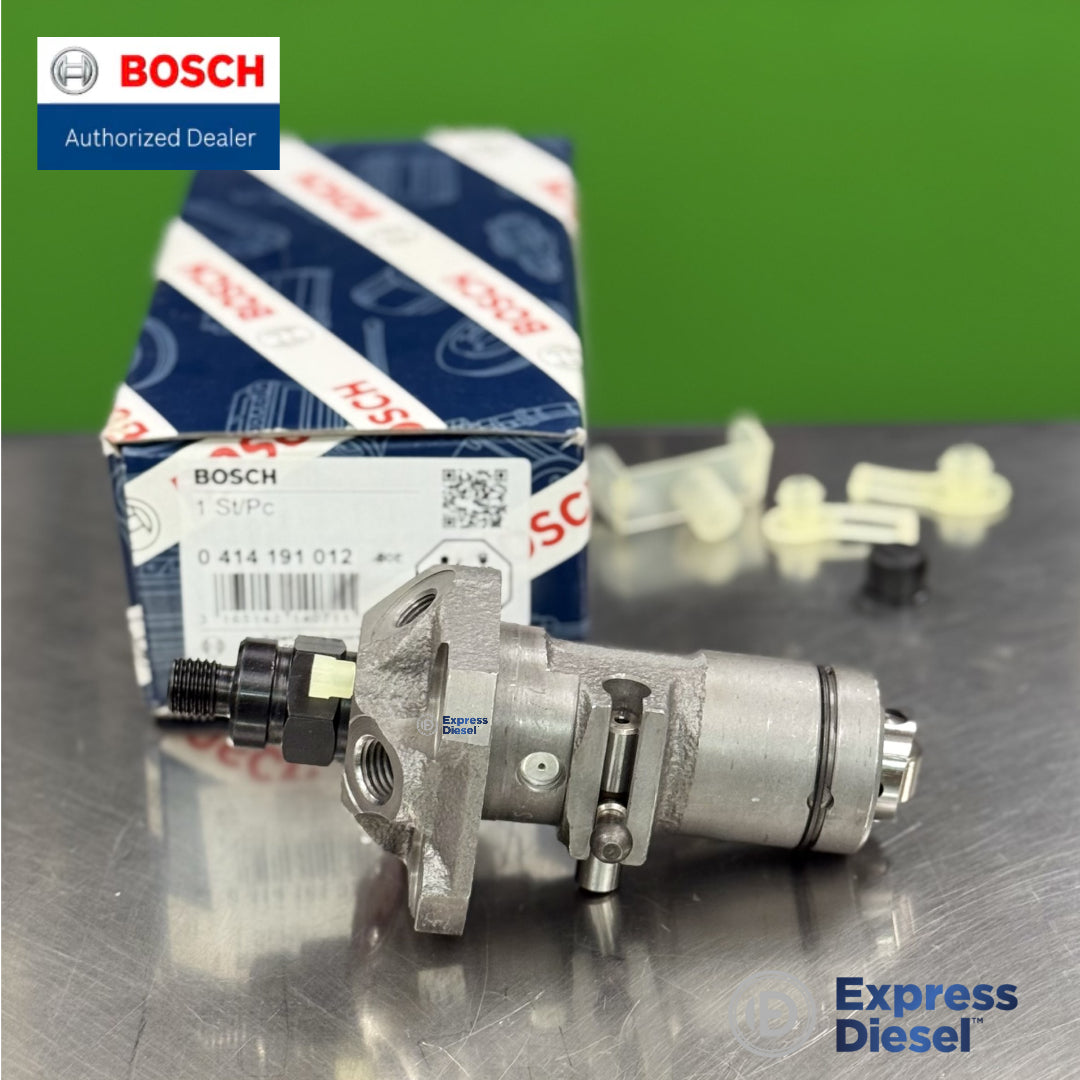

Equivalent pump	0414191003 / PFR1K90A503
OEM reference	24619030, 72258111
Product category	Diesel fuel injection pump
Manufacturer	Bosch
Condition	Brand-new genuine Bosch OEM component
Fuel type	Diesel
Vehicle type	Agricultural, industrial and power-generation equipment
Country of manufacture	India
EAN	3165142140711
Included in package	1 x fuel injection pump
Weight	1 kg
Package dimensions	20 x 10 x 10 cm
Installation area	Engine compartment

Cross-Reference Numbers

Please compare your original part number before ordering.

Brand / Manufacturer	Cross-reference numbers
Bosch	0414191012, 0 414 191 012, 0414191003, 0 414 191 003, PFR1K90A555, PFR1K90A503

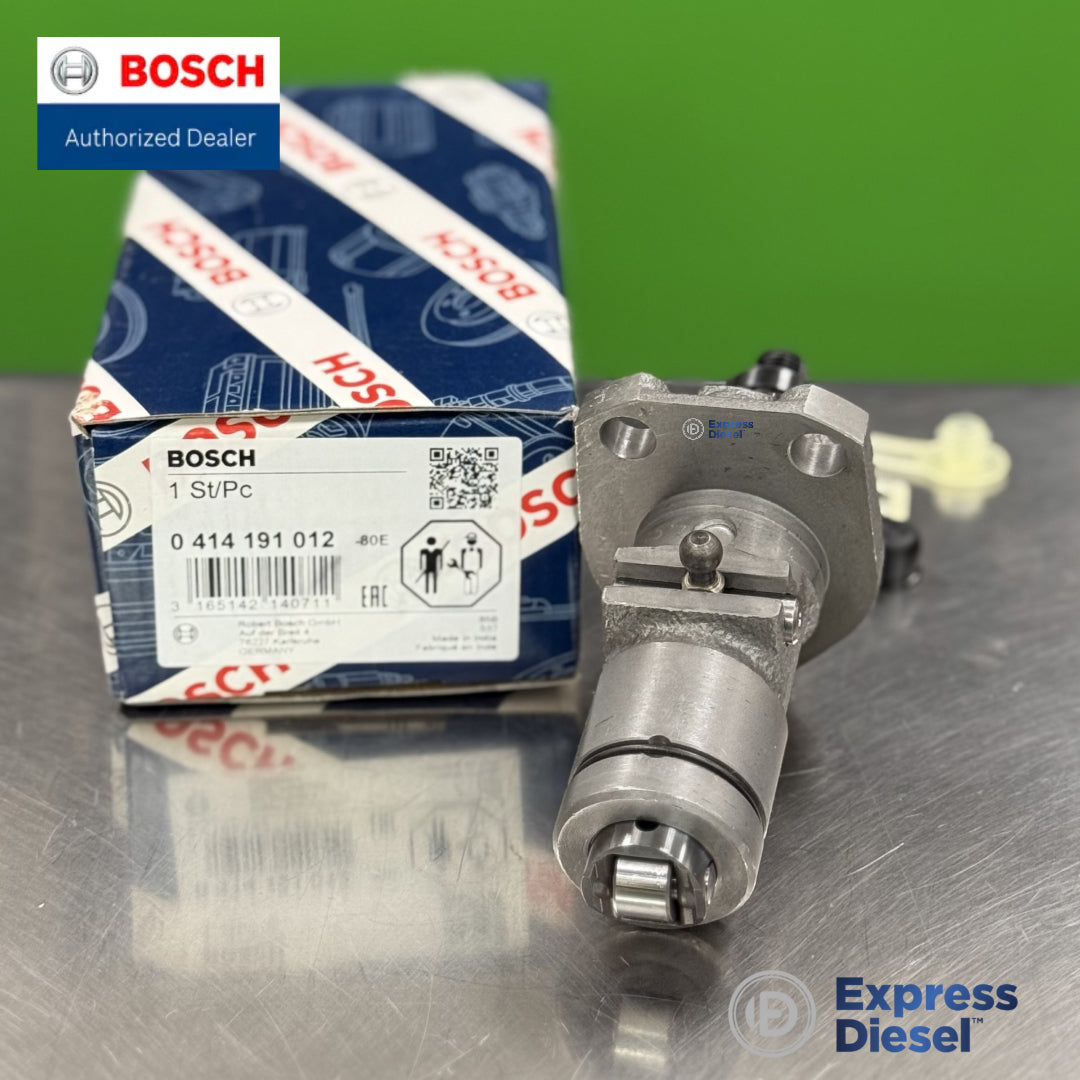

SAME	24619030, 246190300, 246190200, 264190200

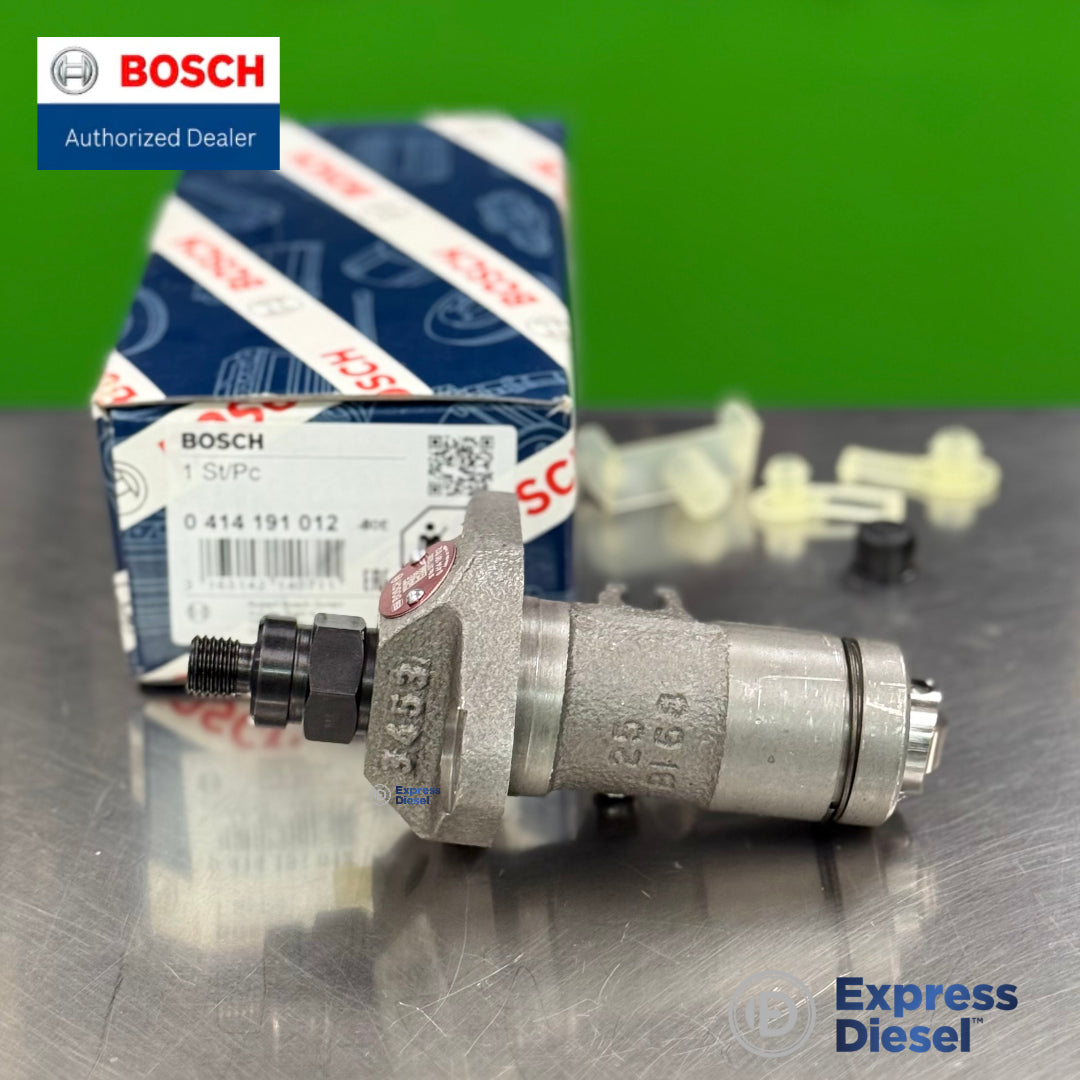

Case IH	72258111, 72258112, 72258113, 72258114

Vehicle Compatibility / Application Guide

Compatibility must always be verified by original Bosch part number, OEM reference number, VIN number, engine serial number or fuel pump identification number. Vehicle model alone is not sufficient for compatibility confirmation.

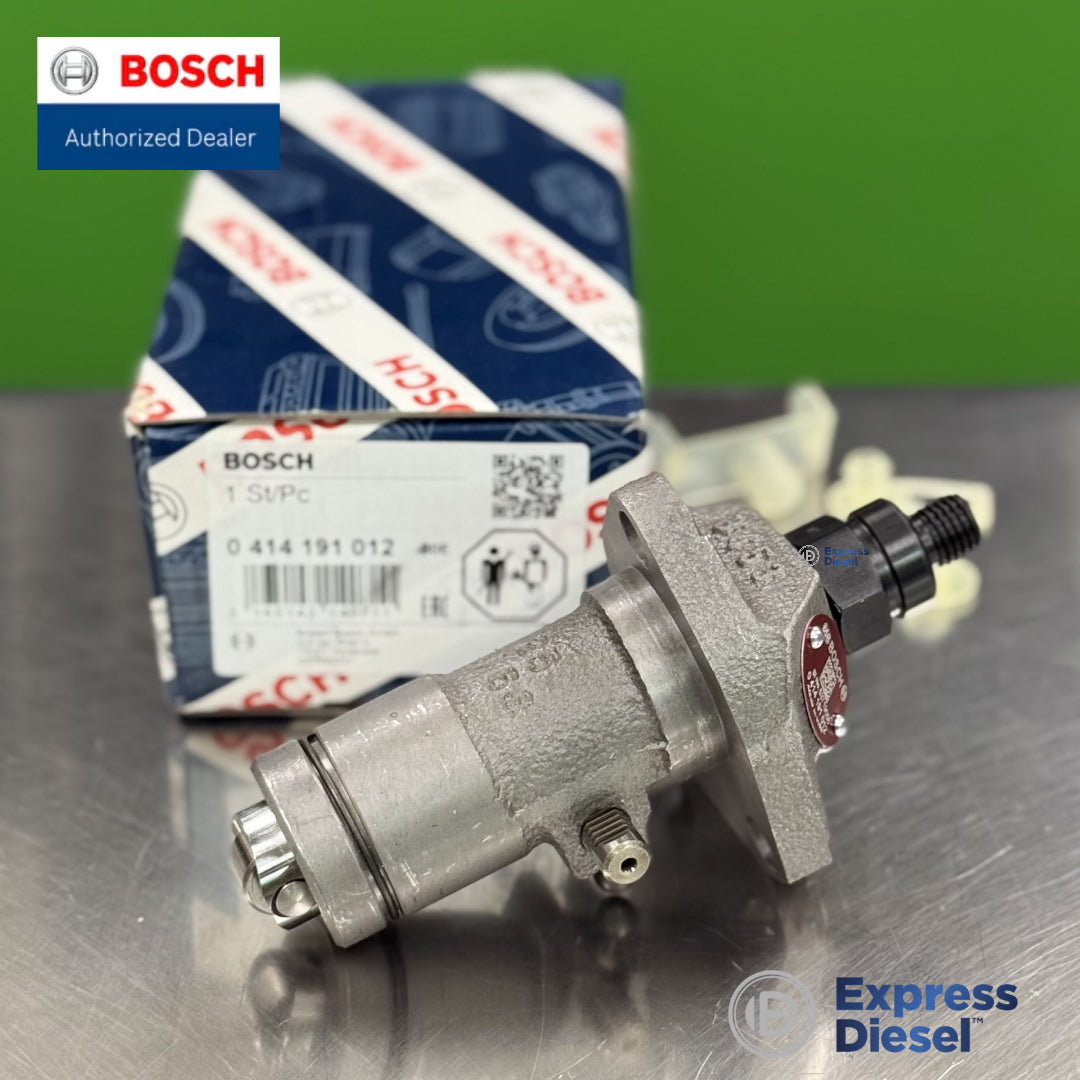

AGCO Deutz-Allis

Model	Cylinders	Power	Years	Engine code
5670 (2WD, AWD)	4L	51 kW	05/1991 - 05/2006	Same-1000.4 A
5680 (2WD, AWD)	4L	59 kW	05/1991 - 05/2006	Same-1000.4 A
6670 (2WD, AWD)	4L	51 kW	05/1991 -	Same-1000.4 A
6680 (2WD, AWD)	4L	59 kW	05/1991 - 05/2006	Same-1000.4 A
6690 (2WD, AWD)	4L	65 kW	05/1991 - 05/2006	Same-1000.4 A
8610 CA AWD	6L	81 kW	05/1991 - 05/2006	Same-1000.6 A
8630 CA AWD	6L	96 kW	05/1991 -	Same-1000.6 AT
White 6065	4L	54 kW	02/1992 -	Lambor.-1000.4 W
White 6065 C	4L	54 kW	02/1992 -	Lambor.-1000.4 W
White 6085	4L	65 kW	02/1992 -	Lambor.-1000.4 WT
White 6085 C	4L	65 kW	02/1992 -	Lambor.-1000.4 WT
White 6105	6L	85 kW	02/1992 -	Lambor.-1000.6 W

Case IH

Model	Cylinders	Power	Years	Engine code
2140 E	4L	55 kW	03/1988 - 03/2003	Carraro-1000.4 A
2140 V	4L	55 kW	03/1988 - 03/2003	Carraro-1000.4 A
2150 E	4L	55 kW	03/1988 - 03/2003	Carraro-1000.4 A

Hürlimann SLH

Model	Cylinders	Power	Years	Engine code
H 358	3L	44 kW	06/1986 - 06/2001	1000.3 W
H 358.4	3L	44 kW	05/1988 - 05/2003	1000.3 A
H 361	3L	44 kW	12/1988 - 12/1990	1000.3 A
H 362	3L	44 kW	04/1989 - 04/2004	1000.3 A
H 372	3L	51 kW	03/1989 - 03/2004	1000.3 AT
H 4105	4L	55 kW	03/1989 - 03/2004	1000.4 WTI
H 468, 468.4	4L	51 kW	06/1986 - 06/2001	1000.4 W
H 476 V	4L	54 kW	12/1988 - 12/1991	1000.4 W
H 478, 478.4	4L	58.8 kW	06/1986 - 06/2001	1000.4 W
H 488 T	4L	65 kW	06/1986 - 06/2001	1000.4 WT
H 6115 Elite	6L	85 kW	12/1989 - 12/2004	1000.6 W
H 6135 Elite	6L	96 kW	12/1989 - 12/2004	1000.6 WT

Lamborghini

Model	Cylinders	Power	Years	Engine code
105 Formula	4L	75 kW	03/1989 - 12/1999	1000.4 WTI
115 Formula	6L	85 kW	12/1989 - 12/1999	1000.6 W
135 Formula	6L	96 kW	12/1989 - 12/1999	1000.6 WT
573-60 N	3L	44 kW	02/1988 - 11/1990	1000.3 W
574-60 N	3L	44 kW	02/1988 - 11/1990	1000.3 W
600	3L	44 kW	03/1989 - 12/1999	1000.3 A
660 F	3L	44 kW	06/1987 - 12/1999	1000.3 A
674-70	4L	54 kW	06/1986 - 12/1999	1000.4 W
674-70 N	4L	54 kW	06/1986 - 12/1995	1000.4 W
674-70 N Bosso	4L	54 kW	06/1986 - 12/1995	1000.4 W
700	3L	51 kW	03/1989 - 12/1999	1000.3 AT
774-80	4L	54 kW	06/1986 - 12/1999	1000.4 W
774-80 DT	4L	54 kW	06/1986 - 12/1999	1000.4 W
774-80 N	4L	54 kW	06/1986 - 12/1999	1000.4 W
775	4L	54 kW	06/1987 - 12/1999	1000.4 W
874.90	4L	65 kW	06/1986 - 12/1999	1000.4 WT
C 774.80	4L	59 kW	06/1986 - 12/2000	1000.4 W
C 874.90	4L	65 kW	09/1990 - 12/2000	1000.4 WT

Muzzi Power Generators

Model	Cylinders	Power	Years	Engine code
MDS 44	4L	59 kW	01/1989 - 01/2004	Same-1000.4 A
MDS 54	-	67 kW	01/1989 - 01/2004	Same-1000.4 AT
MDV 35	3L	44 kW	01/1988 - 01/2003	Same-1005 A

SAME

Model	Cylinders	Power	Years	Engine code
Antares 100	4L	73 kW	03/1989 - 03/2004	1000.4 ATI
Antares 110	6L	81 kW	12/1989 - 12/2004	1000.6 A
Antares 130	6L	96 kW	12/1989 - 12/2004	1000.6 AT
Aster 60	3L	44 kW	03/1989 - 03/2004	1000.3 A
Aster 70	3L	51 kW	03/1989 - 03/2004	1000.3 AT
Crop 90	4L	65 kW	09/1990 -	1000.4 AT
Explorer 60 Export	3L	44 kW	06/1986 - 06/2001	1000.3 A
Explorer 60 Special	3L	44 kW	06/1986 - 06/2001	1000.3 A
Explorer 70 C	4L	51 kW	10/1986 - 10/2001	1000.4 A
Explorer 70 Export	4L	51 kW	07/1986 - 07/2001	1000.4 A
Explorer 70 Special	4L	51 kW	07/1986 - 07/2001	1000.4 A
Explorer 80 C	4L	59 kW	10/1986 - 10/2001	1000.4 A
Explorer 80 Export	4L	59 kW	07/1986 - 07/2001	1000.4 A
Explorer 80 Special	4L	59 kW	07/1986 - 07/2001	1000.4 A
Explorer 90 C	4L	65 kW	04/1990 - 04/2005	1000.4 AT
Explorer 90 Export	4L	65 kW	06/1986 - 06/2001	1000.4 AT
Explorer 90 Special Turbo	4L	65 kW	06/1986 - 12/1988	1000.4 AT
Frutteto 60	3L	44 kW	04/1987 - 04/2002	1000.3 A
Frutteto 75	4L	55 kW	04/1987 - 04/2002	1000.4 A
Vigneron 62	3L	44 kW	03/1988 - 03/2003	1000.3 A
Vigneron 75	4L	55 kW	03/1988 - 03/2003	1000.4 A
SAM	3L	44 kW	01/1987 -	1000.3 A
SAM	3L	52 kW	04/1990 -	1000.3 AT
SAM	4L	59 kW	01/1987 -	1000.4 A
SAM	4L	68 kW	01/1987 -	1000.4 AT
SAM	4L	73 kW	09/1990 -	1000.4 ATI
SAM	6L	81 kW	10/1990 -	1000.6 A
SAM	6L	97 kW	10/1990 -	1000.6 AT

Technical Information

Technical specification	Information
Injection pump type	Bosch PFR mechanical injection pump (PF series)
Pump configuration	PFR1K, single-cylinder element
Fuel system	Mechanical diesel injection system
Application type	Agricultural, industrial and power-generation diesel engines
Engine compatibility	SAME 1000-series 3, 4 and 6-cylinder diesel engines
Installation type	Direct replacement
Compatibility verification	Bosch number, OE number, VIN or engine code required

Related Diesel Fuel System Components

The following related diesel fuel system components may be used together with this application depending on engine configuration.

Product type	Related references
Fuel injector (DHK mechanical type)	0432291685, 0 432 291 685, 24719200, 247192000

Important Note

Please verify your original Bosch number, OEM reference number, VIN number, engine serial number or fuel injection pump number before purchase.

If you are unsure whether this Bosch 0414191012 diesel fuel injection pump is compatible with your diesel engine application, contact us with your equipment model, engine details and identification numbers before ordering.

Do not install the part before confirming compatibility. Installed or used diesel fuel system components may not be eligible for return.

Shipping and Warranty

Shipping / warranty details	Information
Shipping	Same-day handling available for stock items
Pre-order availability	Pre-order items may require 2-4 weeks handling time
Warranty	1-year warranty covering manufacturing defects
Returns	Returns accepted only for unused and uninstalled parts in original condition
Fitment responsibility	Buyer must verify compatibility before installation
Installation damage	Damage caused by improper installation, contaminated fuel or incorrect application is not covered

Frequently Asked Questions

Question	Answer
Is this a genuine Bosch fuel injection pump?	Yes. This is a genuine Bosch OEM diesel fuel injection pump.
What is the main Bosch part number?	The main Bosch reference number is 0414191012 (internal type PFR1K90A555).
What equipment uses Bosch 0414191012?	It is used on SAME 1000-series diesel engines fitted to SAME, Lamborghini, Hürlimann, AGCO Deutz-Allis and Case IH tractors and Muzzi power generators.
What type of injection pump is this?	This is a Bosch PFR-type single-cylinder mechanical injection pump (PF series).
Is part 0414191003 the same pump?	0414191003 / PFR1K90A503 is the equivalent reference for this pump.
What are common signs of fuel injection pump failure?	Hard starting, low power, unstable idle, engine stalling, excessive smoke, fuel delivery problems or poor acceleration may indicate fuel system issues.
Is professional installation recommended?	Yes. Proper installation and fuel system inspection are essential for correct operation and long service life.

Common Symptoms of Fuel Injection Pump Failure

Hard starting, extended cranking, unstable idle, poor acceleration, low engine power, increased fuel consumption, excessive exhaust smoke, rough engine operation, engine stalling, fuel delivery interruptions, abnormal engine noise or difficult cold starts may indicate problems within the diesel fuel injection system.

These symptoms may also be caused by clogged fuel filters, faulty injectors, contaminated fuel, air in the fuel system, lift pump failure, fuel shut-off solenoid faults, timing issues or other diesel engine management problems. Professional diagnostic testing is strongly recommended before replacing any diesel fuel system component.

Important Diagnostic and Installation Information

Before replacing the diesel fuel injection pump, a professional inspection should be performed, including fuel pressure testing, fuel supply inspection, injector condition testing, fuel contamination inspection, timing verification, fuel filter inspection, fuel line inspection and diesel fuel quality analysis.

If the previous injection pump failed due to contamination or internal wear, the injectors, fuel tank, fuel lines, fuel filter housing and related fuel system components should also be inspected and cleaned before installing the replacement pump. Installing a new Bosch diesel injection pump into a contaminated fuel system may result in repeat failure and additional diesel system damage.
