0432193486 Bosch Fuel Injector for Deutz BF4M2012 and Volvo D4D Diesel Engines
0432193486 Bosch Fuel Injector for Deutz BF4M2012 and Volvo D4D Diesel Engines
Couldn't load pickup availability

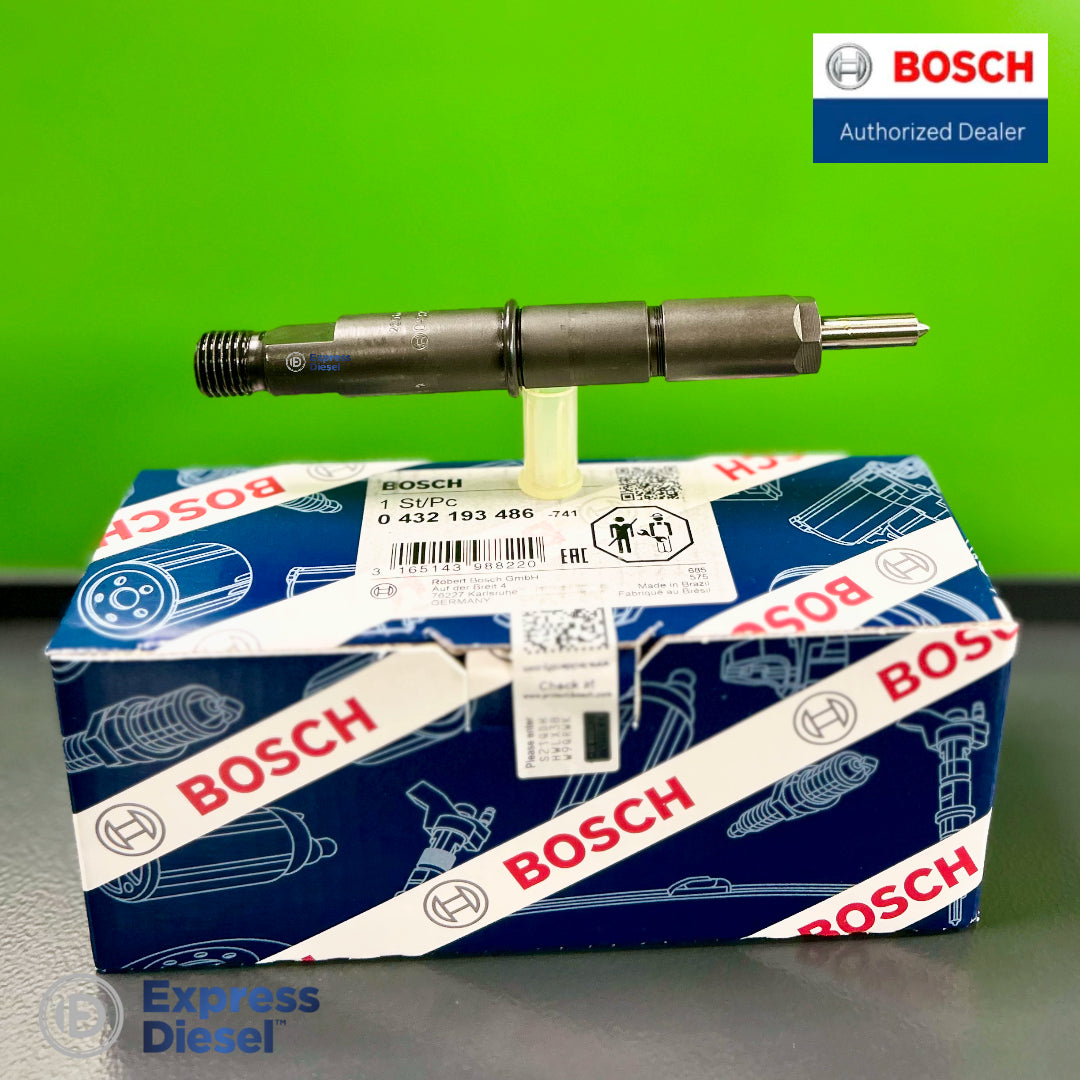

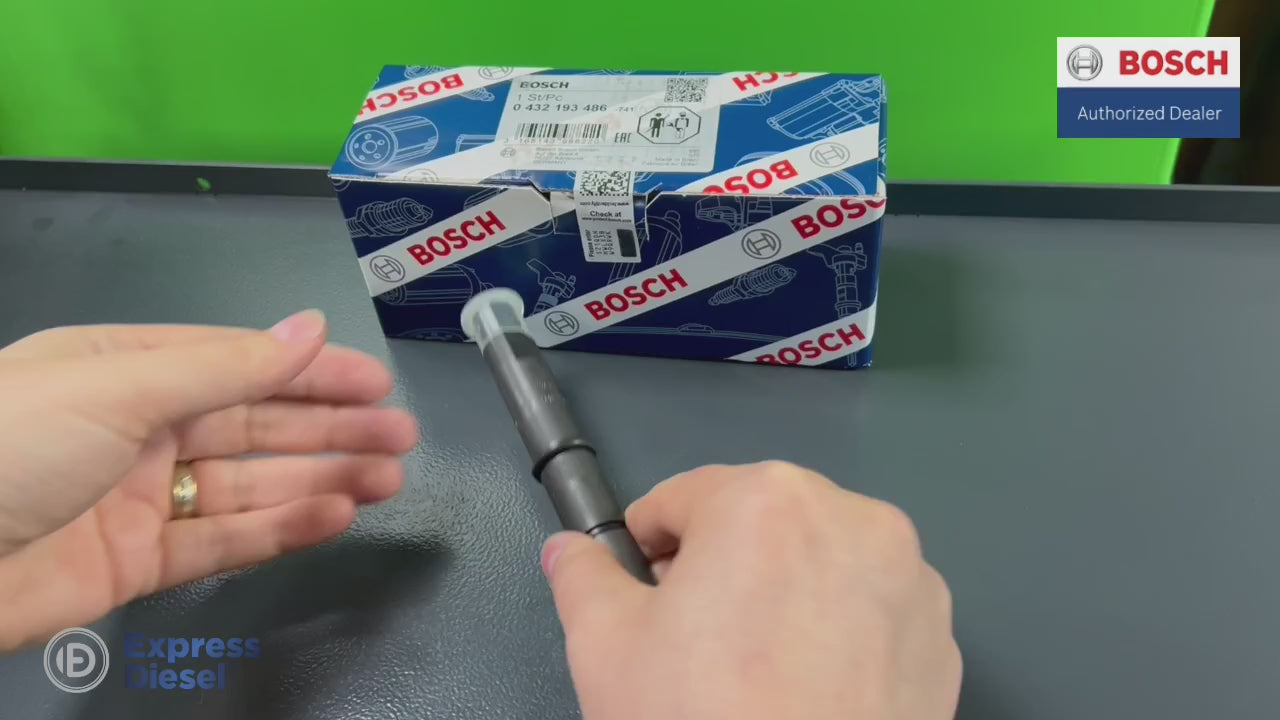

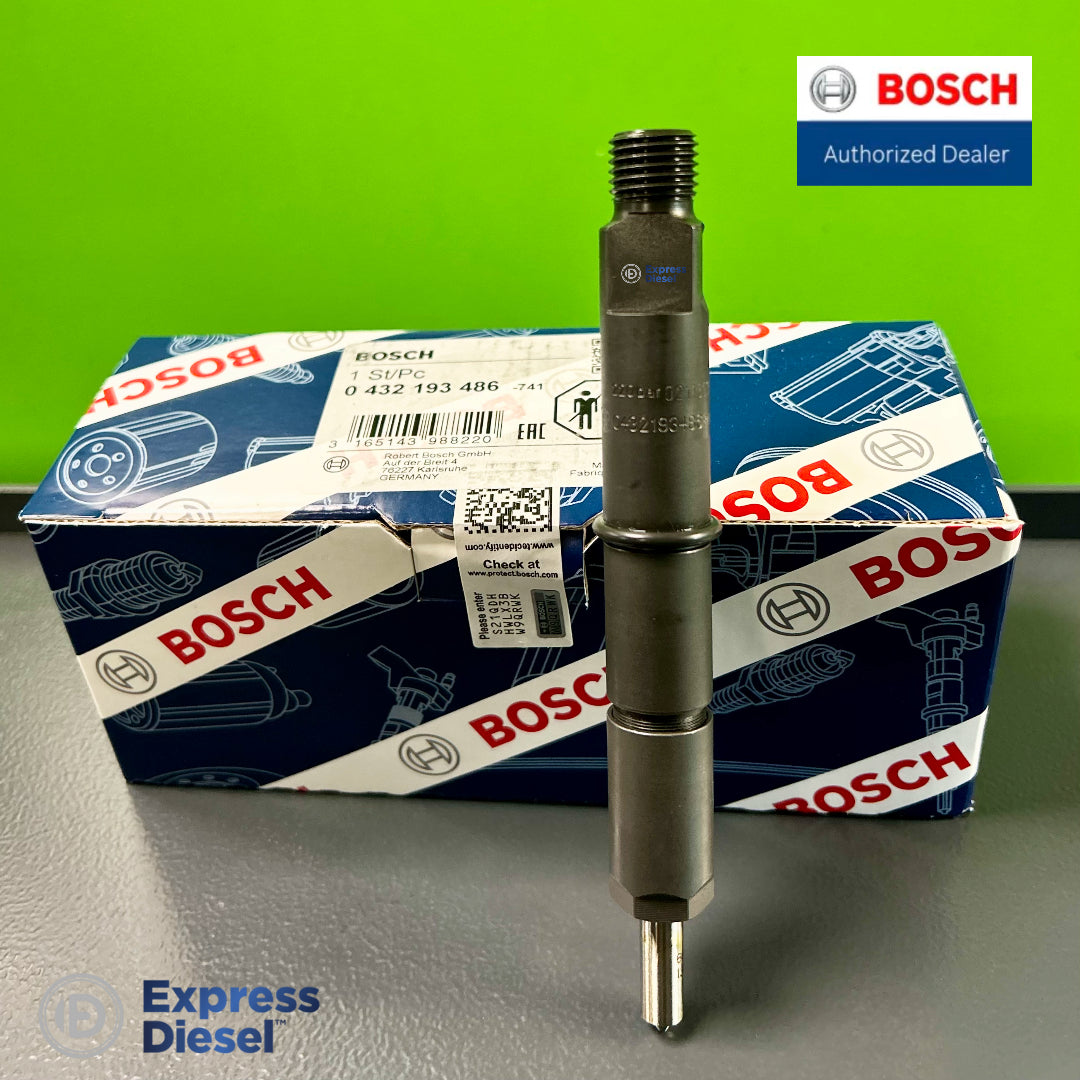

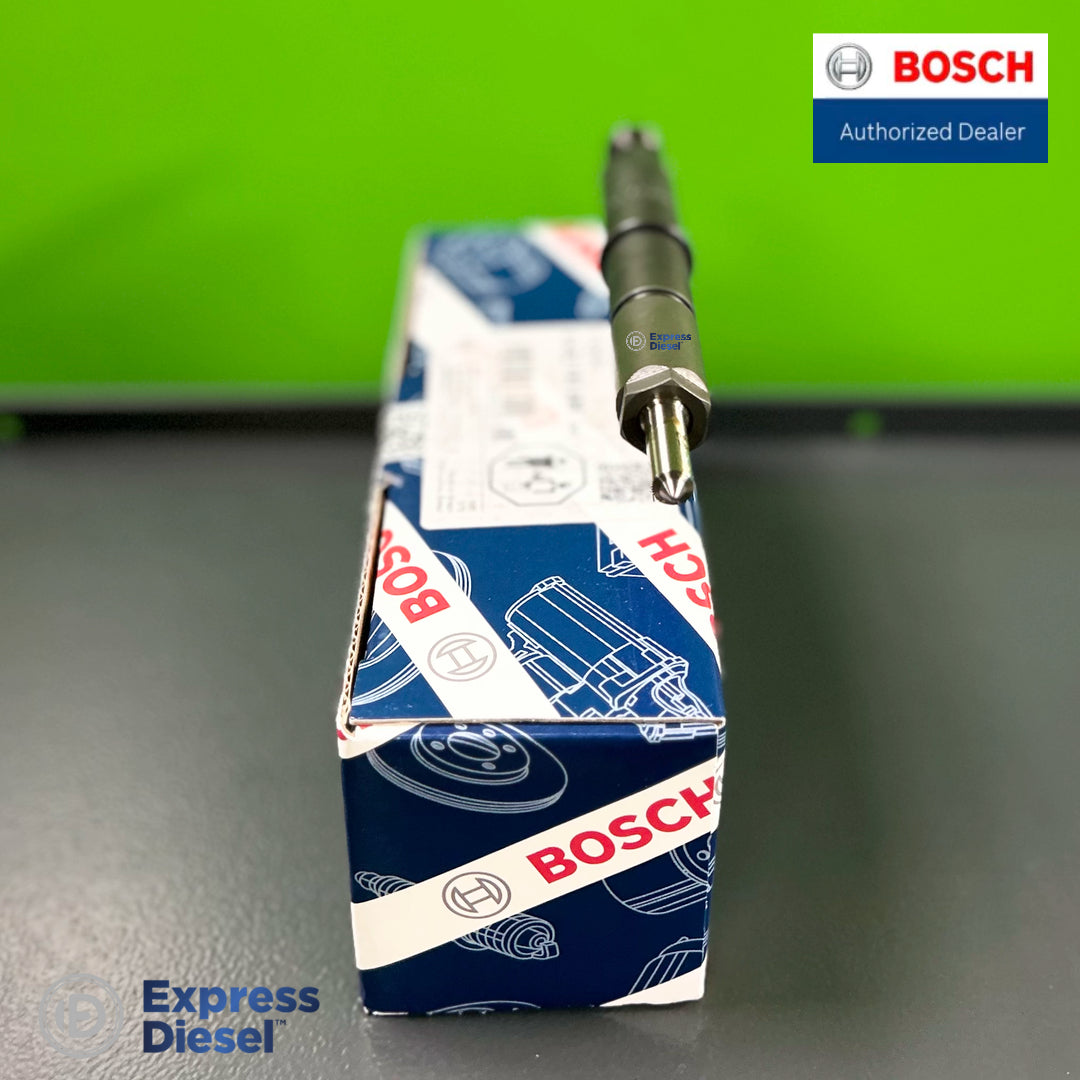

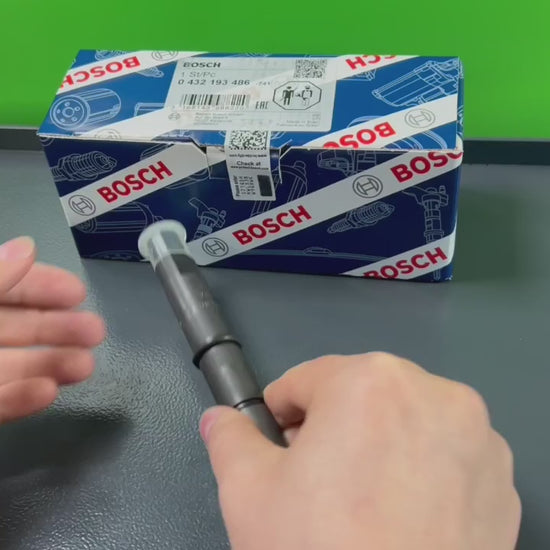

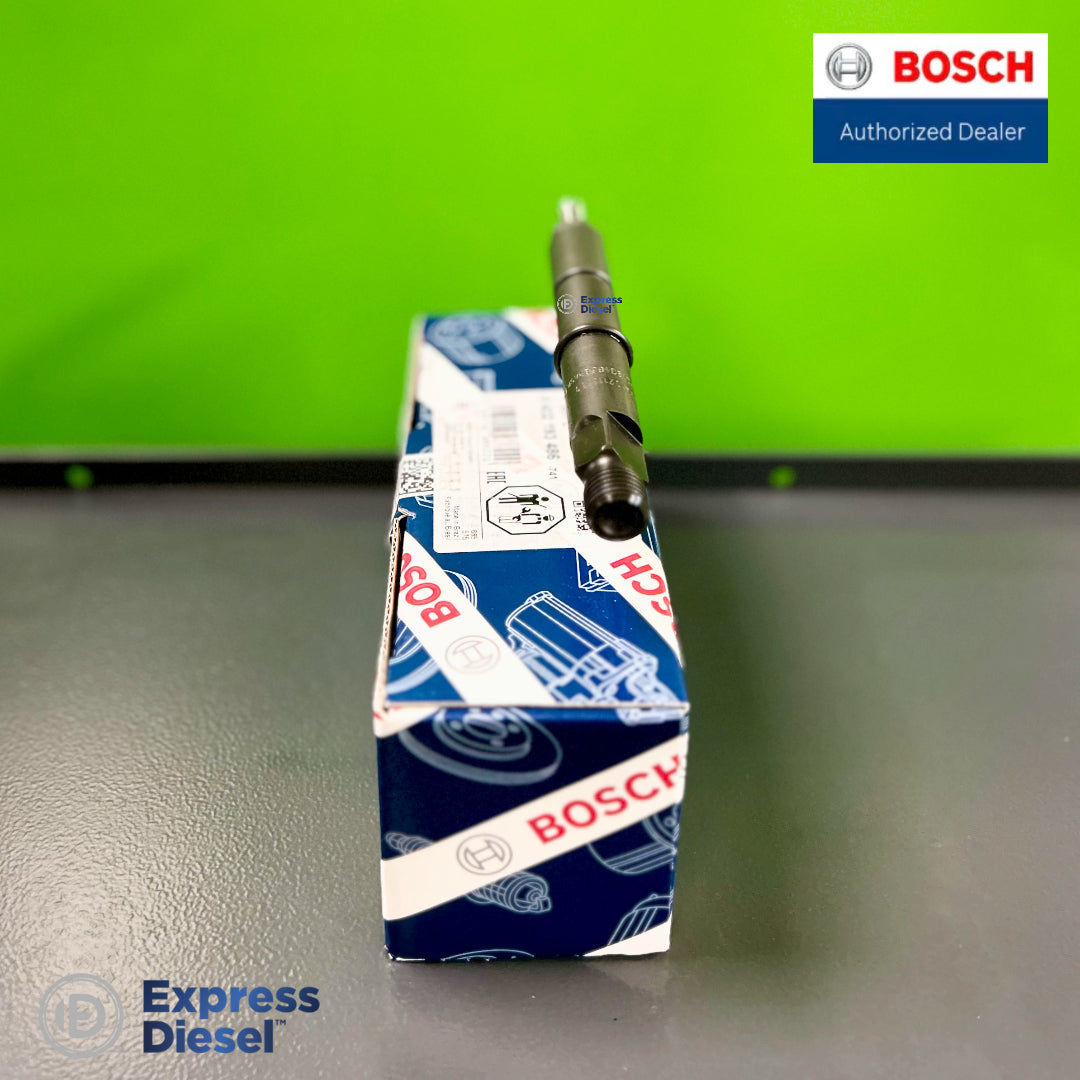

Genuine new Bosch 0432193486 diesel fuel injector (mechanical nozzle-and-holder assembly) for the Deutz BF4M2012 (KHD) engine and the Volvo D4D engine used in BL-Series backhoe loaders and EC-Series excavators. This OEM Bosch injector is built for accurate fuel metering, a consistent spray pattern, reliable starting and long service life in construction and agricultural diesel applications.
This is a complete mechanical nozzle-and-holder assembly with a factory-set opening pressure. Always confirm compatibility by Bosch number, OE number, engine code, engine serial number, or the identification number stamped on the original injector before ordering.
Key Features
| Product type | Bosch diesel fuel injector, complete nozzle-and-holder assembly |
| Brand | Genuine Bosch |
| Injection type | Mechanical diesel injection |
| Application | Construction and agricultural diesel engines |
| Engine compatibility | Deutz BF4M2012 (KHD) and Volvo D4D diesel engines |
| Opening pressure | 220-232 bar (factory set) |
| Fitment type | Direct OEM replacement when part numbers match |
| Quality standard | Bosch OEM manufacturer quality |
| Installation | Professional installation recommended |
Product Details
| Main Bosch part number | 0432193486 |
| Bosch injector family | DHK (per manufacturer data) |
| Product category | Diesel fuel injector nozzle-and-holder assembly |
| Manufacturer | Bosch |
| Condition | Brand-new genuine Bosch OEM component supplied in original manufacturer packaging |
| Made in | Brazil |
| EAN / GTIN | 3165143988220 |
| Opening pressure from | 220 bar |
| Opening pressure to | 232 bar |
| Included in package | 1 fuel injector, 1 O-ring (sealing ring) |
| Weight | 0.3 kg |
| Package dimensions | 20 x 10 x 10 cm |
Cross-Reference Numbers
Compare your original part number before ordering. Vehicle model alone is not enough for compatibility confirmation.
| Bosch | 0432193486, 0 432 193 486 |
| Deutz / KHD | 02113133, 0211 3133, 2113133 |

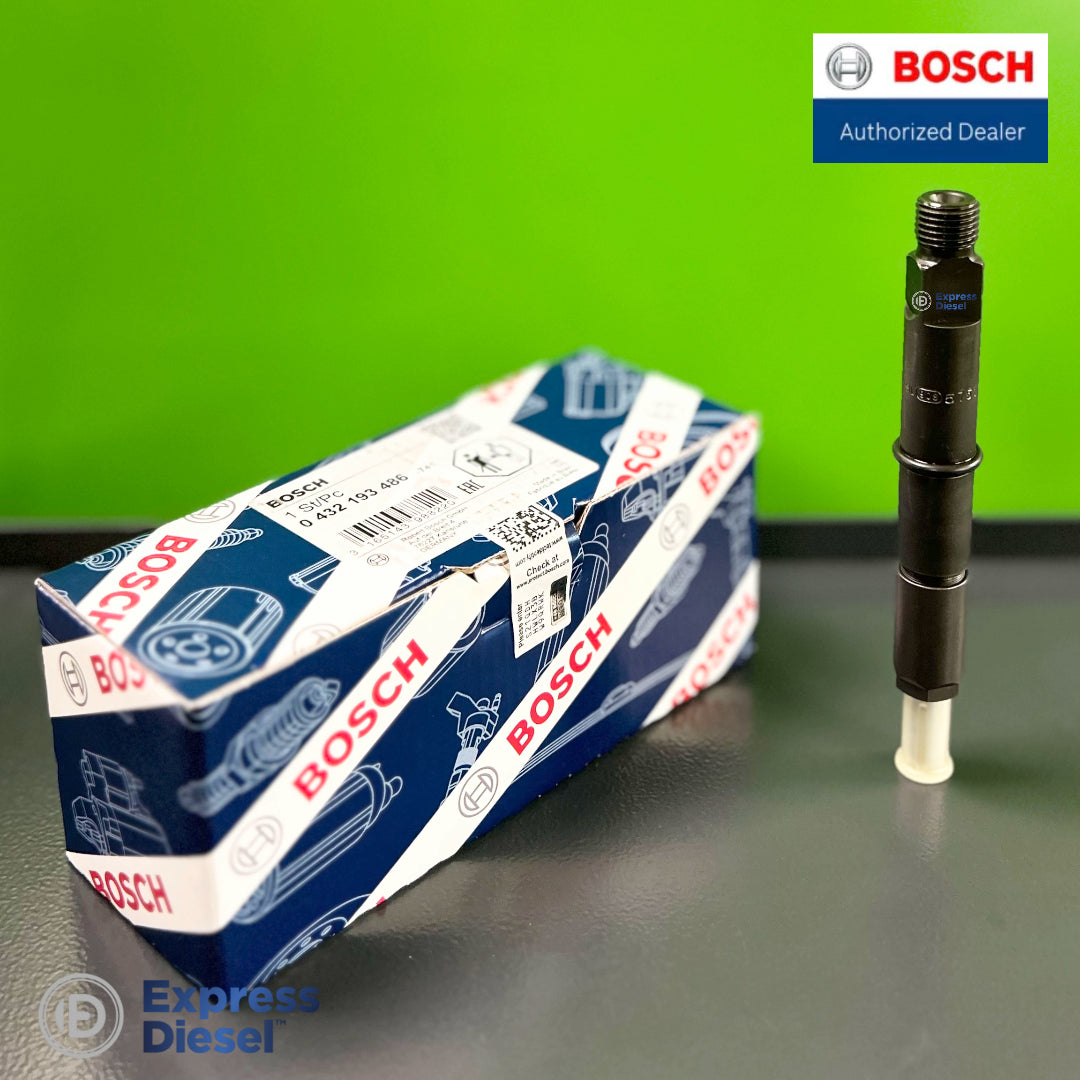

| Volvo | 24425916 |
| Bosch nozzle | DSLA154P1360 - this is the nozzle element fitted inside this injector, not a separate part number for the complete assembly |
Vehicle Compatibility
Compatibility must always be verified by original Bosch part number, OEM reference number, engine code, engine serial number, or injector identification number.
Application: construction and agricultural diesel engines (loaders, excavators, dredgers, backhoe loaders, tractors).
Volvo Construction Equipment
| Model | Engine | Power | Years | Displacement |
|---|---|---|---|---|
| BL60 (backhoe loader) | D4D | 62 kW / 84 hp | 03/2009 - | 4004 cc |
| BL61 (backhoe loader) | D5D CDE3 | 68 kW / 93 hp | 01/2011 - 12/2012 | - |
| BL61 PLUS (backhoe loader) | D5D CDE3 | 69 kW / 94 hp | - | 4004 cc |
| BL70 (backhoe loader) | D4D | 66 kW / 90 hp | 03/2009 - | 4004 cc |
| BL71 (backhoe loader) | D5D CDE3 | 73 kW / 99 hp | 01/2008 - | - |
| BL71 PLUS (backhoe loader) | - | - | - | - |
| EC135B (excavator) | D4D | 69 kW / 94 hp | 09/2004 - 12/2007 | 4004 cc |
| EC140B (excavator) | D4D | 69 kW / 94 hp | 06/2006 - | 4004 cc |
Deutz / KHD
| Engine | Type |
|---|---|
| BF4M2012 | 4-cylinder diesel |
Technical Information
| Injector type | Bosch diesel injector, complete nozzle-and-holder assembly |
| Injection technology | Mechanical diesel injection |
| Opening pressure | 220 - 232 bar (factory set) |
| Application type | Construction and agricultural diesel engines |
| Installation type | Direct OEM replacement when part numbers match |
| Compatibility verification | Bosch number, OE number, engine code or injector ID required |
Related Diesel Fuel System Parts
The following Bosch unit pumps are used on the same Deutz BF4M2012 / Volvo D4D engine family and may be required depending on engine configuration. Fitment depends on the specific vehicle model and engine build, so always verify compatibility against the part currently fitted on your vehicle before ordering.
| Product type | Product codes | Note |
|---|---|---|
| Fuel injection unit pump (Bosch) | 0414401106, 0 414 401 106, 02113002, 211 3002, 24425954, PFM1P100S1010 | Fitment depends on vehicle model; verify compatibility with the pump currently installed on your engine before ordering. |
| Fuel injection unit pump (Bosch) | 0414491109, 0 414 491 109, 02112405, 211 2405, PFM1P100S1009 | Fitment depends on vehicle model; verify compatibility with the pump currently installed on your engine before ordering. |
Compatibility Note
Please verify your original Bosch number, OEM reference number, engine code, engine serial number, or injector identification number before purchase. Do not install the part before checking compatibility. Installed or used fuel system parts may not be eligible for return.
Shipping and Warranty
| Shipping | Same-day handling for stock items |
| Pre-order availability | Pre-order items may require 2-4 weeks handling time |
| Warranty | 1-year manufacturer global warranty covering manufacturing defects |
| Returns | Returns accepted only for unused and uninstalled parts in original condition |
| Fitment responsibility | Buyer must verify compatibility before installation |
| Installation damage | Damage caused by incorrect installation, contaminated fuel, or incorrect application is not covered |
FAQ
| Is this a genuine Bosch fuel injector? | Yes. This is a genuine Bosch OEM diesel fuel injector supplied in original Bosch packaging. |
| What is the main Bosch part number? | The main Bosch reference number is 0432193486. |
| Which engines use Bosch 0432193486? | It is used in the Deutz BF4M2012 (KHD) engine and the Volvo D4D engine fitted to BL60, BL61, BL70 and BL71 backhoe loaders and EC135B and EC140B excavators. |
| What is the opening pressure of this injector? | The factory-set opening pressure is 220 to 232 bar. |
| Is this a common rail injector? | No. This is a mechanical nozzle-and-holder assembly, not a common rail injector. |
| What is included in the package? | One Bosch fuel injector and one O-ring (sealing ring). |
| Is professional installation recommended? | Yes. Professional installation is recommended to ensure correct fitment and proper torque settings. |
Diagnostic Information
Common Symptoms of Fuel Injector Failure
Hard starting, long cranking, unstable idle, engine misfiring, loss of power, rough running, excessive smoke, knocking, or increased fuel consumption may indicate a worn or faulty injector. These symptoms can also be caused by the injection pump, fuel filtration, air in the fuel system, low compression, or other diesel engine management issues, so a full diagnosis is recommended before replacement.
Installation and System Check
Before replacing a diesel fuel injector, inspect the fuel filter, check for water or contamination in the fuel, and verify injection pump operation. Injectors should be tested for opening pressure, spray pattern and leak-off. Replacing injectors as a matched set on the same engine is recommended for balanced performance. Installing a new injector into a contaminated fuel system may result in repeat failure.
