294200-0360 DENSO Fuel Metering Valve SCV Common Rail for Mitsubishi Nissan

DCRS300250 DCRS300260 DENSO Fuel Metering Valve SCV Common Rail for Mitsubishi Nissan Ford Peugeot Citroen Fiat Land Rover Subaru Opel

The DENSO DCRS300250 / DCRS300260 Fuel Pressure Control Valve is designed for diesel engines equipped with Common Rail injection systems. This component is also commonly known as an SCV valve, Suction Control Valve, Fuel Pressure Regulator Valve, Common Rail Pressure Control Valve or Fuel Pressure Control Valve.

This valve helps regulate diesel fuel pressure inside the high-pressure Common Rail system, supporting correct fuel delivery, stable engine operation and proper injector performance.

Key Features

Feature	Details
Product function	Regulates fuel pressure in Common Rail diesel injection systems
Product type	Fuel Pressure Control Valve, SCV Valve, Suction Control Valve, Fuel Metering Valve, Fuel Pressure Regulator, Diesel Pressure Valve
Main applications	Mitsubishi, Nissan, Ford, Peugeot, Citroen, Fiat, Land Rover, Subaru, Opel
Common engine codes	4D56, 4M41, YD25DDTi, EE20Z, DT244, 4HV, 4HU, QVFA, QWFA, A17DTS

Product Details

Product detail	Information
Product codes	DCRS300250 / DCRS300260 / 294200-0360
Brand / Manufacturer	DENSO
Product category	Fuel Pressure Control Valve
Catalog product group	Pressure Control Valve, Common Rail System
Fuel system	Common Rail Diesel Injection
Fuel type	Diesel
Made in	Thailand
EAN	8717613115053

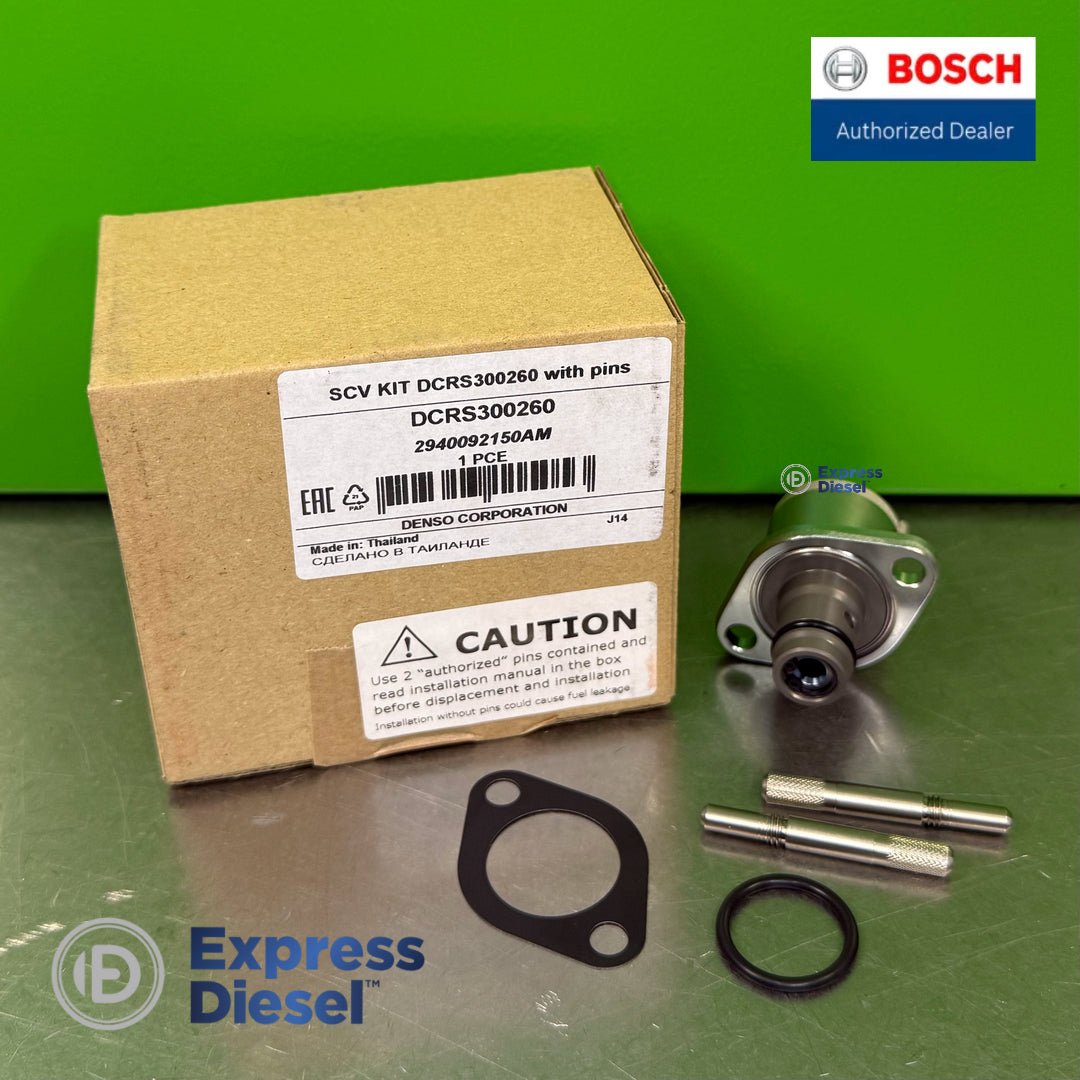

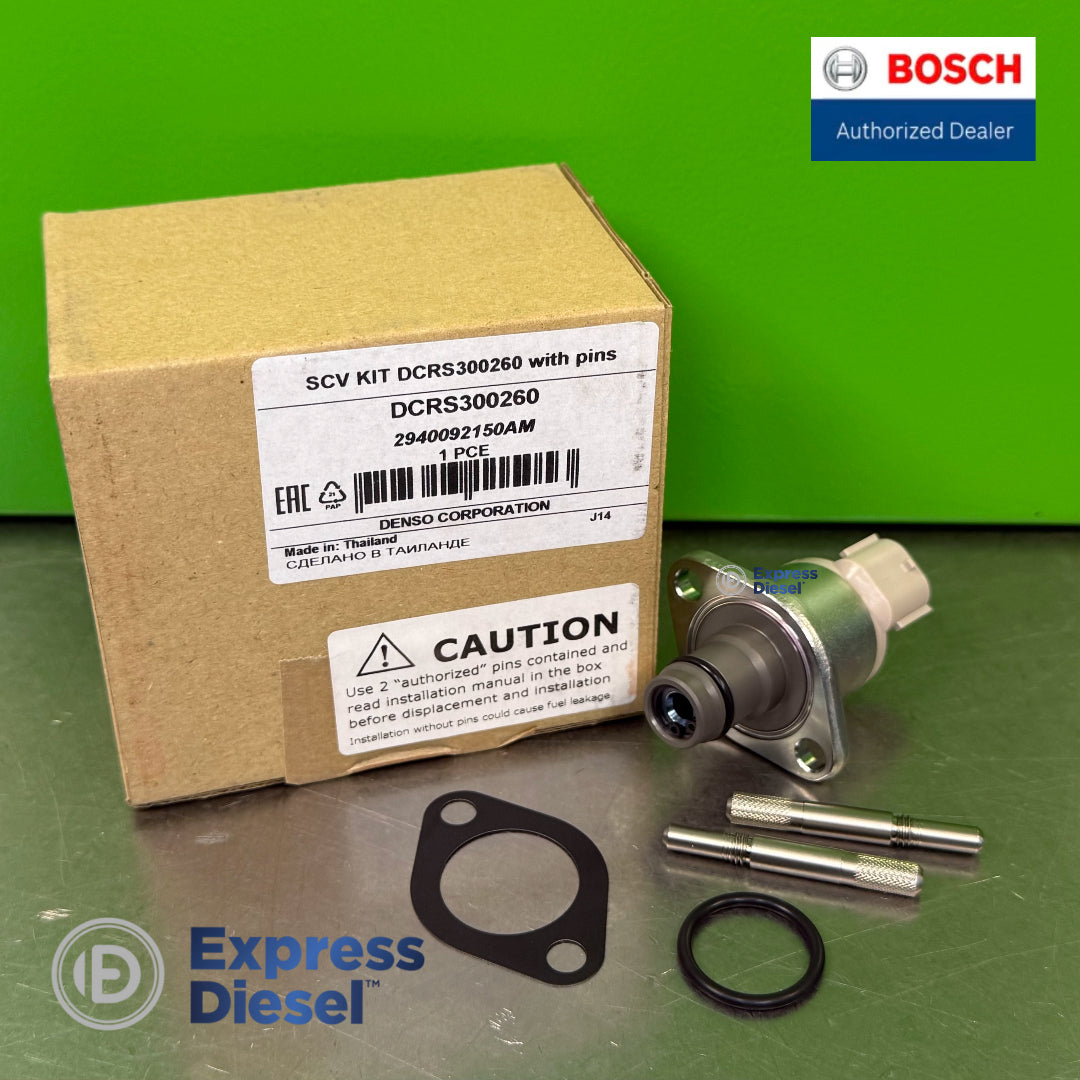

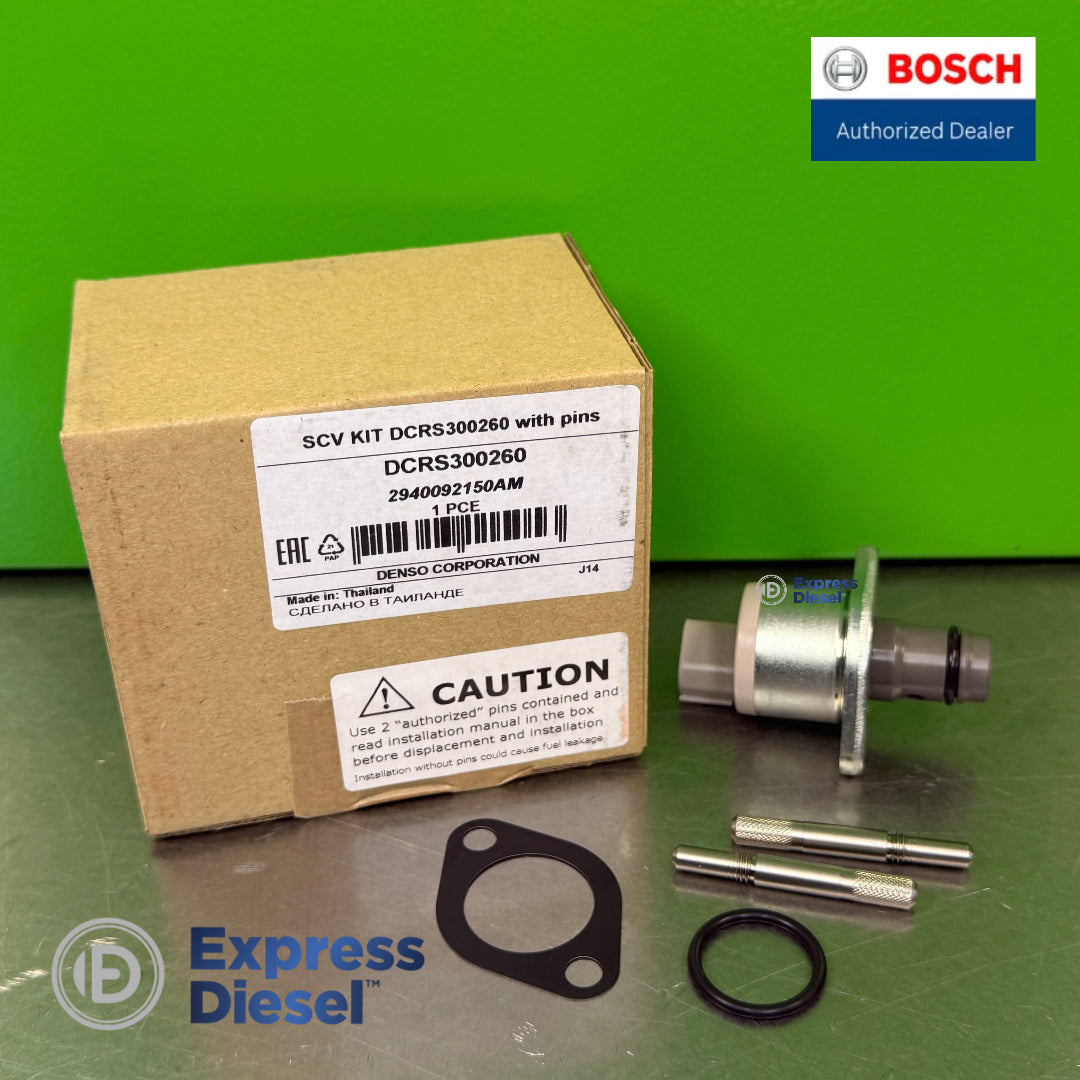

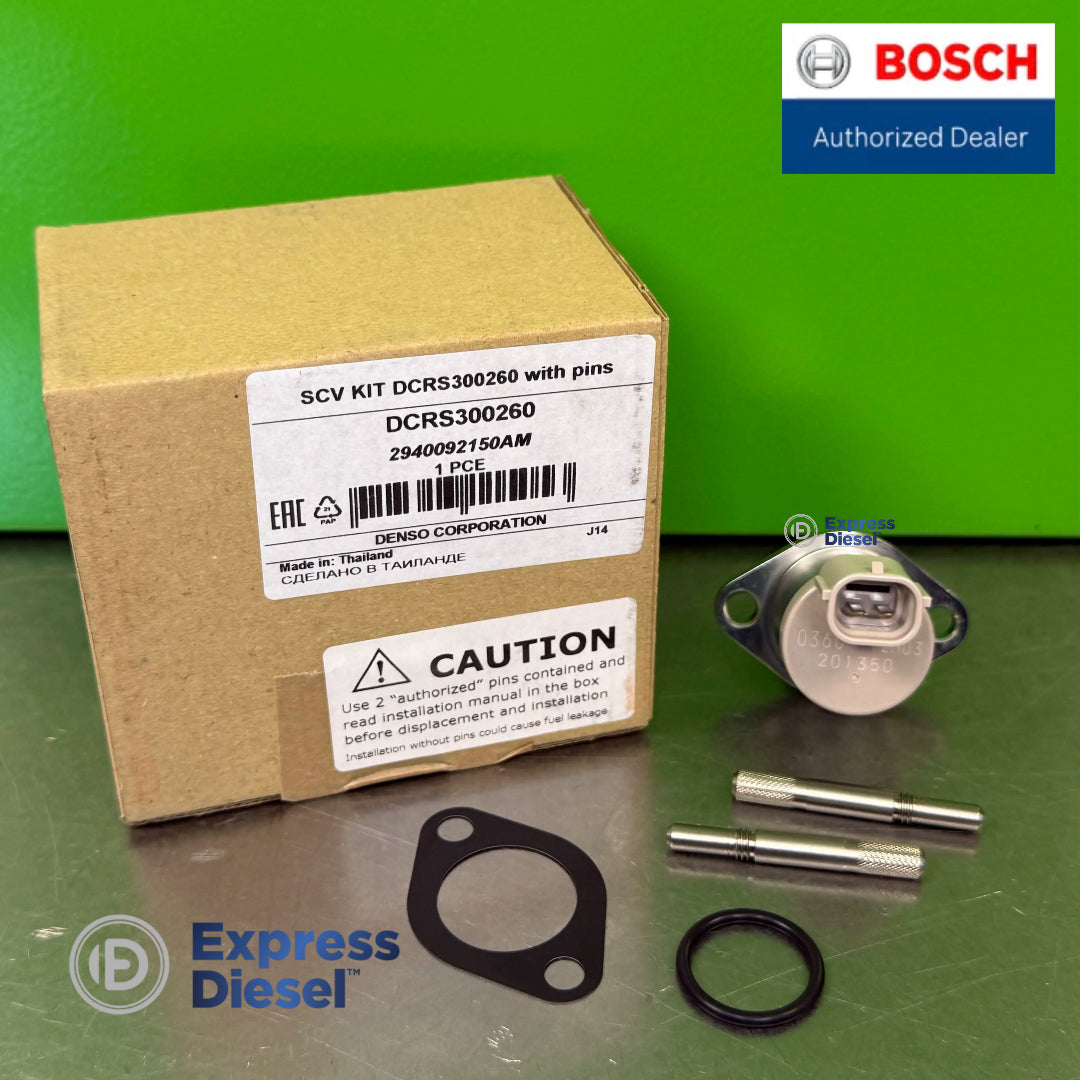

Included in the package	Gasket, 2 guide pins, o-ring
Weight	0.2 kg
Package dimensions	12 x 12 x 12 cm
Condition	Brand new, unused, unopened, item is in the original box
Installation area	Diesel high-pressure fuel injection system

Cross-Reference Numbers

Use this section to compare your original part number before ordering.

Brand / Manufacturer	Cross-reference numbers
DENSO	SM294200-0360, SM2942000360, 2942000360, 294200-0360, 0360, DCRS300260, DCRS300250, 294200-0160, 2942000160, 0160
Ford	6C1Q-9358-AB, 6C1Q-9358-AA, 1514885, 6C1Q9358AB, 6C1Q9358AA
Citroen / Peugeot	1920.QK, 1920QK
Fiat	9665523380
Isuzu	8-98043735-0, 8980437350
Land Rover	LR009837
Mazda	RFY0 13 V21A, RFY013V21A
Mitsubishi	1460A031, 1460A037
Nissan	A6860-EC09A, A6860EC09A

Main Vehicle Applications

This DENSO SCV fuel pressure control valve is listed for selected applications from the following vehicle brands: Mitsubishi, Nissan, Ford, Peugeot, Citroen, Fiat, Land Rover, Subaru and Opel.

Main engine codes covered include: 4D56, 4D56-HP, 4M41, YD25DDTi, YD25ETI, EE20Z, DT244(PUMA), 4HV, 4HU, QVFA, QWFA, A17DTS.

Compatibility information below is organized by vehicle brand, model, engine, production year, displacement, power and engine code.

Compatibility / Application Guide

Compatibility must be confirmed by matching the original part number, fuel pump number, VIN or engine code. Vehicle model alone is not enough to guarantee compatibility.

Citroen Jumper III - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Jumper III Bus	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Jumper III Bus	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)
Jumper III Chassis	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Jumper III Chassis	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)
Jumper III Van / Box	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Jumper III Van / Box	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)

Peugeot Boxer - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Boxer Bus	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Boxer Bus	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)
Boxer Chassis	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Boxer Chassis	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)
Boxer Van / Box	2.2 HDi 100	04.2006 -	74	101	2198	4	4HV (P22DTE)
Boxer Van / Box	2.2 HDi 120	04.2006 - 12.2016	88	120	2198	4	4HU (P22DTE)

Fiat Ducato 250 - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Ducato Bus (250)	100 Multijet 2.2 D	07.2006 - 05.2011	74	101	2198	4	4HV
Ducato Chassis (250)	100 Multijet 2.2 D	07.2006 - 05.2011	74	101	2198	4	4HV
Ducato Van / Box (250)	100 Multijet 2.2 D	07.2006 - 05.2011	74	101	2198	4	4HV

Ford Transit / Transit Tourneo - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Transit / Transit Tourneo	2.2 TDCi	04.2006 - 08.2014	63	85	2198	4	P8FA; P8FB
Transit / Transit Tourneo	2.2 TDCi	04.2006 - 08.2014	81	110	2198	4	QVFA
Transit / Transit Tourneo	2.2 TDCi	07.2006 - 08.2014	81	110	2198	4	QVFA
Transit / Transit Tourneo	2.2 TDCi	10.2008 - 08.2014	85	115	2198	4	SRFA; SRFB; SRFC; SRFD; SRFE
Transit / Transit Tourneo	2.2 TDCi	04.2006 - 08.2014	96	130	2198	4	QWFA
Transit / Transit Tourneo	2.2 TDCi	07.2006 - 08.2014	96	131	2198	4	QWFA
Transit / Transit Tourneo	2.2 TDCi	10.2007 - 08.2014	103	140	2198	4	PGFA; PGFB; UHFA; UHFB; UHFC
Transit / Transit Tourneo	2.4 TDCi RWD	04.2006 - 08.2014	74	100	2402	4	PHFA; PHFC
Transit / Transit Tourneo	2.4 TDCi RWD	04.2006 - 08.2014	85	115	2402	4	JXFA; JXFC
Transit / Transit Tourneo	2.4 TDCi RWD	04.2006 - 08.2014	103	140	2402	4	H9FB; H9FD
Transit / Transit Tourneo	2.4 TDCi 4x4	11.2006 - 08.2014	103	140	2402	4	H9FB
Transit / Transit Tourneo	3.2 TDCi RWD	09.2007 - 08.2014	147	200	3199	5	SAFA; SAFB

Land Rover Defender - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Defender	2.4 Td4 4x4 (L316)	10.2006 - 02.2016	90	122	2402	4	DT244(PUMA)
Defender	2.4 Td4 4x4 (L317)	05.2007 - 02.2016	90	122	2402	4	DT244(PUMA)

Mitsubishi L200 IV / Triton (KA, KB) - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
L200 IV / Triton (KA, KB)	2.5 DI-D (KA4T)	04.2010 - 12.2015	94	128	2477	4	4D56-HP; 4D56 (16V)
L200 IV / Triton (KA, KB)	2.5 DI-D (KA4T)	11.2005 - 12.2015	100	136	2477	4	4D56-HP
L200 IV / Triton (KA, KB)	2.5 DI-D 4WD (KB4T)	11.2005 - 12.2015	100	136	2477	4	4D56-HP
L200 IV / Triton (KA, KB)	2.5 DI-D (KA4T)	08.2007 - 12.2015	123	167	2477	4	4D56-HP
L200 IV / Triton (KA, KB)	2.5 DI-D 4WD (KB4T)	10.2007 - 12.2015	123	167	2477	4	4D56-HP
L200 IV / Triton (KA, KB)	2.5 DI-D 4WD (KB4T)	04.2010 - 12.2015	131	178	2477	4	4D56-HP

Mitsubishi Pajero 3.2 DI-D - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Pajero IV / Pajero Applications	3.2 DI-D (V88W, V98W)	02.2007 -	118	160	3200	4	4M41
Pajero IV / Pajero Applications	3.2 DI-D	02.2007 -	123	167	3200	4	4M41
Pajero IV / Pajero Applications	3.2 DI-D (V88W, V98W)	02.2007 -	125	170	3200	4	4M41
Pajero IV / Pajero Applications	3.2 DI-D 4WD (V98W, V88W)	02.2007 -	140	190	3200	4	4M41
Pajero IV / Pajero Applications	3.2 DI-D 4WD (V98W, V88W)	01.2009 -	147	200	3200	4	4M41
Pajero IV Van / Pajero Applications	3.2 DI-D	11.2006 -	118	160	3200	4	4M41
Pajero IV / Pajero Applications	3.2 TD 4WD (V88V, V98V)	01.2010 -	147	200	3200	4	4M41
Pajero / Pajero Classic Applications	3.2 DI-D (V68W, V78W)	09.2006 -	125	170	3200	4	4M41

Nissan Navara / NP300 Navara / Pathfinder - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Navara (D22)	2.5 D 4x4	11.2001 -	98	133	2488	4	YD25DDTi
Navara Pick-up (D22)	2.5 dCi	04.2008 -	98	133	2488	4	YD25DDTi
Navara Pick-up (D22)	2.5 dCi 4x4	04.2008 -	98	133	2488	4	YD25DDTi
Navara Chassis (D22)	2.5 Di	02.2002 -	98	133	2488	4	YD25DDTi; YD25ETI
Navara Chassis (D22)	2.5 Di 4WD	02.2002 -	98	133	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi	07.2005 -	106	144	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi 4WD	07.2005 -	106	144	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi	10.2006 -	120	163	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi 4WD	10.2006 -	126	171	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi 4WD	07.2005 -	128	174	2488	4	YD25DDTi
NP300 Navara (D40)	2.5 dCi 4WD (D40T, D40M, D40BB)	12.2009 -	140	190	2488	4	YD25DDTi
NP300 Navara Chassis (D40)	2.5 dCi 4WD	08.2008 -	106	144	2488	4	YD25DDTi
NP300 Navara Chassis (D40)	2.5 dCi 4WD	08.2008 -	126	171	2488	4	YD25DDTi
Pathfinder III (R51)	2.5 dCi 4WD	01.2005 -	120	163	2488	4	YD25DDTi
Pathfinder III (R51)	2.5 dCi 4WD	10.2006 -	126	171	2488	4	YD25DDTi
Pathfinder III (R51)	2.5 dCi	01.2005 - 01.2010	128	174	2488	4	YD25DDTi
Pathfinder III (R51)	2.5 dCi 4WD	01.2005 - 01.2010	128	174	2488	4	YD25DDTi
Pathfinder III (R51)	2.5 dCi 4WD	08.2010 -	140	190	2488	4	YD25DDTi
Pick-up (D22)	2.5 Di	03.2002 - 12.2012	98	133	2488	4	YD25DDTi

Opel Meriva B (S10) - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Meriva B (S10)	1.7 CDTI (75)	06.2010 - 10.2013	96	131	1686	4	A 17 DTS

Subaru - Engine Applications

Model / Body Type	Engine	Years	kW	HP	cc	Cyl	Engine Code
Forester III (SH)	2.0 DAWD (SHH, SHD, SHN)	09.2008 - 09.2013	108	147	1998	4	EE20Z
Impreza III Hatchback (GR, GH, G3)	2.0 DAWD	01.2009 - 03.2012	110	150	1998	4	EE20Z
Legacy IV Wagon / Combi (BP)	2.0 DAWD (BPD)	02.2008 - 12.2009	110	150	1998	4	EE20Z
Legacy / Outback BP Applications	2.0 DAWD (BPD)	09.2008 - 09.2009	110	150	1998	4	EE20Z

Technical Information

Technical detail	Information
Manufacturer	DENSO
Part / Product codes	DCRS300250 / DCRS300260 / 294200-0360
Product type	Fuel Pressure Control Valve
Also known as	SCV Valve / Suction Control Valve / Fuel Metering Valve
Injection system	Common Rail
Fuel type	Diesel
Catalog product group	Pressure Control Valve, Common Rail System
Main engine codes covered	4D56, 4D56-HP, 4M41, YD25DDTi, YD25ETI, EE20Z, DT244(PUMA), 4HV, 4HU, QVFA, QWFA, A17DTS
Main vehicle brands covered	Mitsubishi, Nissan, Ford, Peugeot, Citroen, Fiat, Land Rover, Subaru, Opel
Cylinders shown in catalog	4-cylinder applications
Displacement range shown	1686 cc - 3200 cc
Power range shown	63 kW - 147 kW / 85 HP - 200 HP

Important Note

Please verify your original part number before purchase. If you are not sure whether this DENSO SCV valve fits your vehicle, send us your part number, VIN number, fuel pump number or engine serial number and we can help confirm compatibility before ordering.

Do not install the part before checking compatibility. Installed or used fuel system parts may not be eligible for return.

Shipping and Warranty

Shipping / warranty detail	Information
Shipping	Same-day handling for stock items. Pre-order items ship in 2-4 weeks
Warranty	1-year manufacturer global warranty covering manufacturing defects. For more details, please read warranty policy.
Returns	Returns accepted only for unused, uninstalled parts in original condition. For more details, please read return policy.
Fitment responsibility	Customer should verify compatibility before installation
Installation damage	Damage caused by incorrect installation, contaminated fuel or incorrect application is not covered

Frequently Asked Questions

Question	Answer
Is 294200-0360 the same as DCRS300260?	Yes, this listing refers to the DENSO DCRS300260 / 294200-0360 fuel pressure control valve. The part may also be searched as 2942000360 or SM294200-0360.
What are the symptoms of failure?	Hard starting, long cranking, engine no-start condition, unstable idle, misfiring, power loss, sudden stalling, low pressure, knocking engine noise, black smoke or check engine light may occur. Important note: these symptoms may also be caused by other faulty components. We recommend professional vehicle diagnostics by a qualified mechanic or service center before purchasing or replacing this part.
Is calibration required after installation?	Yes, calibration is required after installation.
